Product Features

Faster crushing capability in a short time various functions according to working materials.

Easy to clean when changing materials or color

Easy to move and install without any special tools

The size of crushed materials can be changed by changing screen mesh.

Working materials: Plastics, rubber, film.

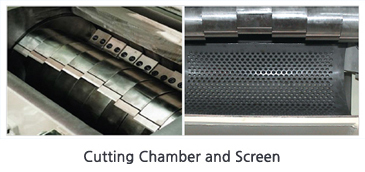

Cutter & Screen

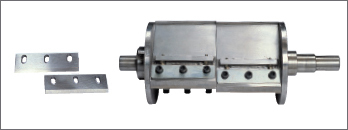

C-Type Cutter

As an improved R-Type, convenient for repair and maintenance.

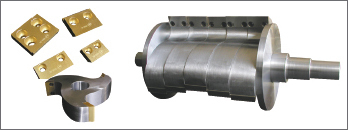

R-Type Cutter

Appropriate for crushing heavily loaded general resin or rigid material.

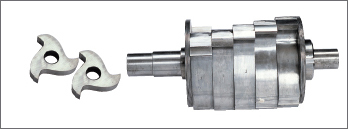

S-Type Cutter

Appropriate for crushing soft resin, film blow molding product.

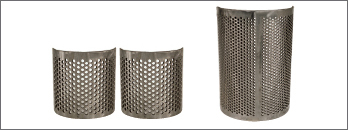

Screen

Desired even crushed particles can be achived by various screen.

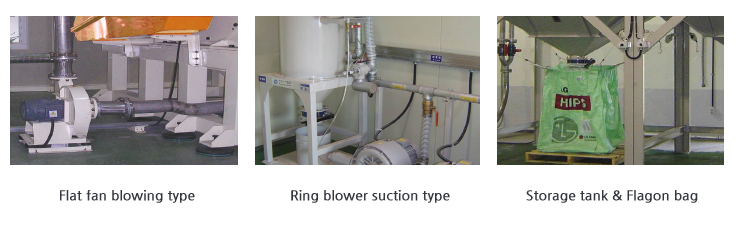

Scrap Feeding & Storage System

Specifications

Model	Motor kW	Capacity kg/hr	Chamber Size mm	Rotary Blade C, R, S Type	Fixed Blade EA	Cutter Dia Ø D	R.P.M (50/60HZ)	Dimensions WxLxH(mm)
HKC-H2	1.5	80~100	140 x 140	4(12), 4, 3	2 (1+1)	150	500/600	490 x 810 x 1100
HKC-H3	2.2	80~100	140 x 140	4(12), 4, 3	2 (1+1)	150	500/600	490 x 810 x 1100
HKC-H5	3.75	100~150	200 x 200	5(15), 5, 3	2 (1+1)	205	483/580	550 x 1260 x 1400
HKC-H7.5	5.5	150~250	280 x 250	5(15), 5, 6	2 (1+1)	250	483/580	700 x 1450 x 1540
HKC-H10	7.5	250~350	360 x 250	6(18), 6, 6	2 (1+1)	250	467/560	740 x 1450 x 1540
HKC-H15	11.5	300~400	420 x 250	7(21), 7, 9	2 (1+1)	250	467/560	870 x 1520 x 1550
HKC-H20	15	400~500	480 x 330	8(24), 8, 9	4 (2+2)	300	467/560	940 x 1550 x 1840
HKC-H25	19	500~600	540 x 370	9(27), 9, 9	4 (2+2)	350	450/540	1170 x 1680 x 2100
HKC-H30	22	600~700	630 x 370	10(30), 11, 9	4 (2+2)	350	450/540	2160 x 2000 x 2240
HKC-H50	37.5	700~1000	720 x 500	11(33), 12, 9	4 (2+2)	500	450/540	2370 x 2560 x 2620
HKC-H60	45	800~1200	800 x 500	11(33), 13, 12	4 (2+2)	500	450/540	2450 x 2560 x 2620
HKC-H75	55	800~1200	800 x 500	11(33), 13, 12	4 (2+2)	500	450/540	2450 x 2560 x 2620
HKC-H100	75	1200~2000	1000 x 700	13(39), 13, 15	4 (2+2)	700	417/500	2970 x 3000 x 3560
