제품명(영문)

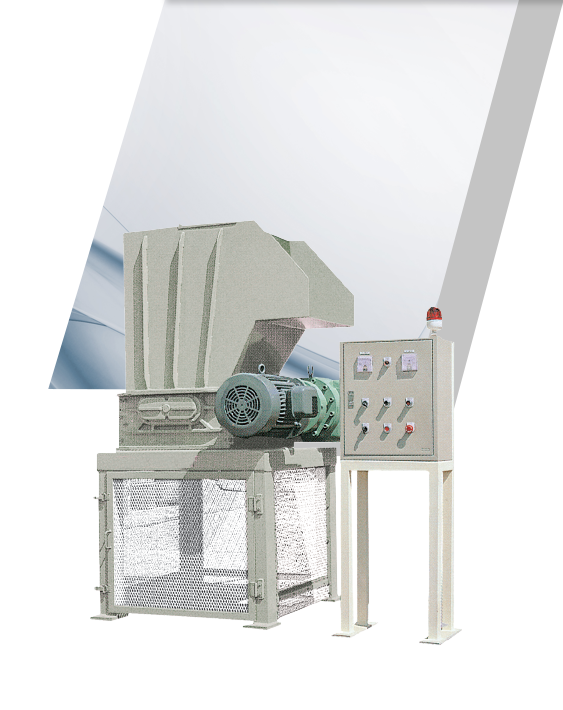

Industrial shredders
제품 유형
Making the volume to be minimized

Product Features

  • Disposal Of General Waste Articles

    • Shredder is most suitable for all kind of waste articles putting together with transfer station, compressor and subsidiary devices. movable shredding systems available

    Example - Stone, Construction Waste, Wood, Paper, Plastic Container, Furniture, Electric Goods, Food, Rubber, Waste tire and so on



  • Disposal Of Industrial Waste Articles

    • Shredding system can allow the companies who have many problems on the disposal of waste articles, such as landfill space, transportation, environment and so on. Low speed bi axial shredder have had a good reputation for the disposal of industrial waste articles

    Example - Pe. Foam, Plastics, Metals, Rubber, Wood and So On




    Specifications

    Technical Data
    And
    Dimensions    		 Unit IM6/15 IM8/15 IM10/15 IM13/15 IM8/30 IM10/30 IM13/30 IM8/50 IM10/50 IM13/50
    Volume Of
    Hopper    		 m3 0.5 0.7 0.8 1 0.9 1.2 1.46 0.9 1.2 1.46
    Size Of
    Shredding    		 mm 580 x 620 812 x 620 1,012 x 620 1,270 x 620 760 x 850 1,040 x 850 1,260 x 850 760 x 850 1,040 x 850 1,260 x 850
    Number Of
    Shaft    		 n 2 2 2 2 2 2 2 2 2 2
    Revolving
    Per Minute    		 rpm 19.3/10.5 19.3/10.5 19.3/10.5 19.3/10.5 16.7/10.1 16.7/10.1 16.7/10.1 16.7/10.1 16.7/10.1 16.7/10.1
    Thickness
    Of Cutters    		 mm 15, 30 15, 30 15, 30 15, 30 30, 50 30, 50 30, 50 30, 50 30, 50 30, 50
    Capacity Of
    Motor    		 kW 11 11 11 11 22 22 22 37 37 37
    Weight Of
    Machine    		 kg 1,430 1,650 1,850 2100 4,500+550 5,000+550 6,000+550 4,600+550 5,100+550 6,100+550
    Size Of
    Machine    		 m 1.4x1.5x2.2 1.2x1.3x2.2 1.2x1.3x2.2 1.2x1.9x2.2 1.8x1.6x2.6 1.9x1.6x2.6 2.2x1.6x2.6 1.8x1.6x2.6 1.9x1.6x2.6 2.2x1.6x2.6





    Some Examples Of
    Prouduction    		 Unit IM6/15 IM8/15 IM10/15 IM13/15 IM8/30 IM10/30 IM13/30 IM8/50 IM10/50 IM13/50
    Plastics kg/hr 200~600 200~700 250~800 300~800 500~1000 600~1200 700~1500 800~2000 800~2000 800~2500
    Skin & Born kg/hr 300~600 300~700 300~800 300~1000 1500~3000 2000~3000 2000~4000 2000~3000 2000~4000 2000~4000
    Rubber kg/hr 200~600 200~700 300~800 400~800 800~1500 800~1500 800~2000 800~2000 1000~1500 1000~1500
    Elastomer Sheet ea/hr 200~600 200~700 300~500 400~800 500~800 500~1000 700~1500 800~2000 800~2000 800~2000
    Pallets kg/hr - - - - - - 50~100 - - 60~120
    Wastes ea/hr - - - 600~1000 600~1200 600~1500 600~2000 800~2000 1000~2000 1000~2500
    Plastics Drums ea/hr - - - - 60~100 60~100 60~100 60~120 60~120 60~120
    Steel Drums ea/hr - - - - - - - 120 120 120
    Metal Savings kg/hr - - - - 800~1500 1000~2000 1200~2000 1000~1500 1000~2000 1200~2000
    Tyres kg/hr - - - - - - - 500~1000 600~1200 700~1500
