제품명(영문)
Low Speed Crusher
제품 유형
For automation and cost saving

Product Features

  • Cost saving : prevents material loss through crushing sprue and runner directly after molding.

  • Low-noise and low-dust with low-speed motor.

  • Easy to clean by one-touch dissembling parts.

  • High wear-resistance and shock-resistance cutters obtain crushed materials in a good form.

    •

    Low Noise, Strong Power!

    Scutting And Crushing In One Time! Fitted In Large Runner Or Product




    Specifications

    Model Motor
    kW    		 Input Hopper
    Size
    mm    		 Chamber
    Size
    mm    		 Number of
    Revolution
    RPM    		 Capacity
    kg/hr
    (6mmstandard)    		 Crushing
    Particle
    mm    		 Machine
    Weight
    kg    		 Dimensions
    WxLxH
    (mm)
    SINGLE
    SHAFT    		 KHC-L010S 0.75 160 x 178 164 x 178 29 15 4, 5, 7 250 350 x 660 x 1000
    HKC-L020S 1.5 325 x 350 248 x 250 29 20 4, 5, 7 340 480 x 1020 x 950
    HKC-L023S 2.2 325 x 350 248 x 250 29 20 4, 5, 7 350 480 x 1020 x 960
    HKC-L030S 2.2 430 x 500 328 x 354 29 30 4, 6, 8 450 580 x 1100 x 1200
    HKC-L035S 3.75 430 x 500 328 x 354 29 30 4, 6, 8 470 580 x 1100 x 1230
    HKC-L050S 3.75 500 x 550 424 x 441 29 50 6, 8 650 710 x 1350 x 1320
    HKC-L057S 5.5 500 x 550 424 x 441 29 55 6, 8 700 710 x 1350 x 1370
    HKC-L070S 5.5 500 x 740 573 x 550 29 60 ~ 85 6, 8 1200 825 x 1650 x 1670
    HKC-L100S 7.5 500 x 740 573 x 550 29 60 ~ 85 6, 8 1300 825 x 1650 x 1700

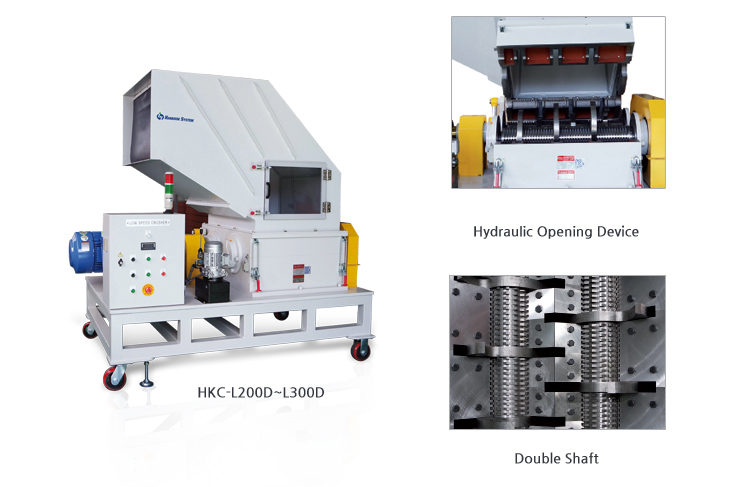

    DOUBLE
    SHAFT    		 HKC-L100D 7.5 600 x 700 635 x 700 29 120 8, 10 1900 1100 x 1900 x 1940
    HKC-L150D 11 600 x 700 635 x 700 29 120 8, 10 2000 1100 x 1900 x 2000
    HKC-L200D 15 700 x 870 746 x 870 29 120~150 8, 10 3300 1290 x 2150 x 2100
    HKC-L300D 22 900 x 1026 933 x 1026 29 180 8, 10 4000 1650 x 2600 x 2600
    HKC-L400D 30 900 x 1026 933 x 1026 29 180 8, 10 4100 1650 x 2600 x 2600
