Product Features

All-in one system (Chiller & MTC) maximizes the equipment's efficiency.

Compact design installing at the narrow space

Use of advanced components for the best performance

Wide Temperature Controller Range (10℃~120℃)

Fool/Proof System application, Alarm for Higher/Lower limit & Multifunctional Device

Multistage temperature control system (2~4 multizone)

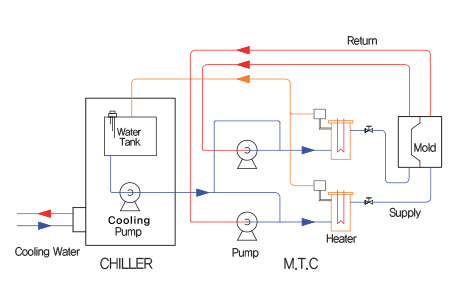

2 Zone Type

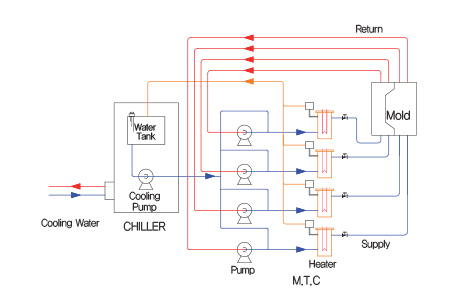

4 Zone Type

표준사양

Model		Compressor kW	Capacity kcal/hr(50/60hz)	Chiller Pump kW	Pump kW	Heater kW	Dimensions WxLxH(mm)
2 Zone Type	HKFC-050-60-2Z	3.75	12000/15120	1.3	0.4 x 2	6kW X 2	750 x 1200 x 1600
	HKFC-070-60-2Z	5.5	18140/22680	1.3	0.4 x 2	6kW X 2	750 x 1300 x 1600
	HKFC-100-100-2Z	7.5	24190/30240	2.1	0.8 x 2	9kW X 2	800 x 1400 x 1600
	HKFC-150-100-2Z	11	36300/45360	2.1	0.8 x 2	9kW X 2	800 x 1400 x 1700
	HKFC-200-150-2Z	15	48384/60480	2.9	1.5 x 2	12kW X 2	900 x 1700 x 1700
	HKFC-300-250-2Z	22.5	72570/90720	2.9	2.2 x 2	15kW X 2	950 x 1800 x 1800
	HKFC-400-250-2Z	30	96770/120960	5.1	2.2 x 2	15kW X 2	950 x 2100 x 1800
4 Zone Type	HKFC-070-60-4Z	5.5	18140/22680	1.3	0.4 x 4	6kW X 4	850 x 1300 x 1600
	HKFC-100-60-4Z	7.5	24190/30240	2.1	0.4 x 4	6kW X 4	850 x 1400 x 1600
	HKFC-150-100-4Z	11	36300/45360	2.1	0.8 x 4	9kW X 4	850 x 1400 x 1700
	HKFC-200-100-4Z	15	48384/60480	2.9	0.8 x 4	9kW X 4	900 x 1700 x 1700
	HKFC-300-150-4Z	22.5	72570/90720	2.9	1.5 x 2	12kW X 4	1000 x 2000 x 1800
	HKFC-400-150-4Z	30	96770/120960	5.1	1.5 x 2	12kW X 4	1100 x 2100 x 1950
	HKFC-400-250-4Z	30	96770/120960	5.1	2.2 x 4	15kW x 4	1100 x 2400 x 2000

* The standard of cooling capacity is 7.2°C and it differs depending in the evaporation temperature.
