제품명(영문)
Auto Mold Chiller
제품 유형
Maximize production capacity and carry out high-quality molding

Air Cooled Type Features

  • Equipment can be moved easily because no coolant pipe is installed.

  • System can be installed easily in a narrow space inside plants and can be used optimally when there is a problem with respect to supply of coolant.

    •



    Water Cooled Type Features

  • Strong cooling ability is demonstrated even in high temperature environment like summer

  • Provides comfortable working environment without noise or hot air

  • Multiple number of molds can be cooled simultaneously depending on cooling capacity.

    •

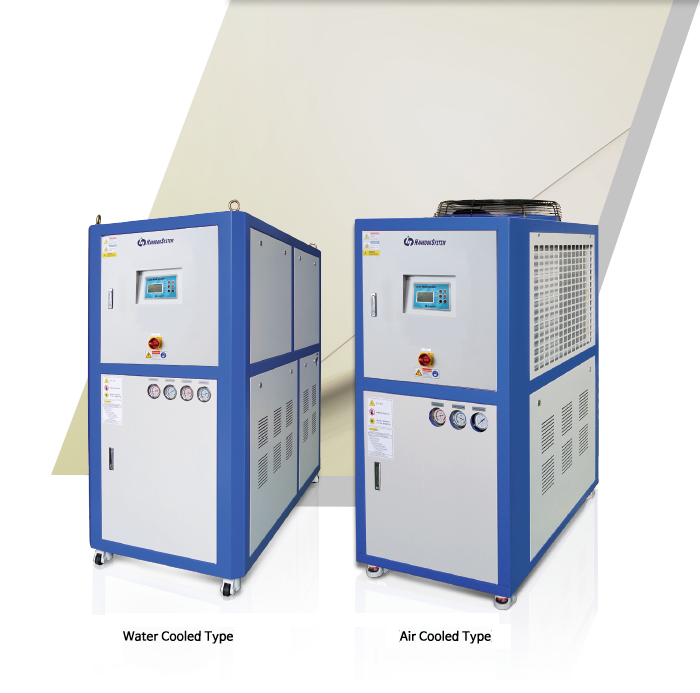

    Water Cooled Type





    Air Cooled Type





    Water Cooled Type

    Model Compressor
    kW    		 Capacity kcal/hr
    (50/60hz)    		 Pump
    kw    		 Max.Air Flow
    ℓ/min(50/60hz)    		 Cooling Water
    ℓ/min    		 Applicated IMM
    (Ton)    		 Dimensions
    WxLxH(mm)    		 Weight
    kg
    HKMC-030W 2.2 7250/9072 0.75 92/110 40 ~ 250 550 x 1000 x 1100 200
    HKMC-050W 3.75 12000/15120 1.3 92/110 65 ~ 350 550 x 1000 x 1100 250
    HKMC-075W 5.5 18140/22680 1.3 165/200 100 ~ 650 600 x 1200 x 1200 450
    HKMC-100W 7.5 24190/30240 2.1 165/200 130 ~ 1000 800 x 1350 x 1450 500
    HKMC-150W 11 36300/45360 2.1 300/360 190 ~ 1300 800 x 1350 x 1450 700
    HKMC-200W 15 48384/60480 2.9 300/360 250 ~ 1800 800 x 1700 x 1650 850
    HKMC-300W 22.5 72570/90720 2.9 465/560 340 ~ 3000 900 x 1800 x 1700 950
    HKMC-400W 30 96770/120960 5.1 560/700 440 3000 up 950 x 2100 x 1750 1200





    Air Cooled Type

    Model Compressor
    kW    		 Capacity kcal/hr
    (50/60hz)    		 Pump
    kw    		 Max.Air Flow
    ℓ/min(50/60hz)    		 Fan
    ∅ , kW    		 Applicated IMM
    (Ton)    		 Dimensions
    WxLxH(mm)    		 Weight
    kg
    HKMC-030A 2.2 6624/8280 0.75 92/110 500 , 0.4 ~ 250 700 x 1200 x 1500 250
    HKMC-050A 3.75 11040/13800 1.3 92/110 500 , 0.4 ~ 350 700 x 1200 x 1500 300
    HKMC-075A 5.5 16560/20700 1.3 165/200 600 , 0.75 ~ 650 700 x 1450 x 1500 500
    HKMC-100A 7.5 22080/27600 2.1 165/200 600 , 0.75 ~ 1000 800 x 1600 x 1700 550
    HKMC-150A 11 32800/41000 2.1 300/360 650 , 0.75 x 2 EA ~ 1300 800 x 1600 x 1700 750
    HKMC-200A 15 40000/50000 2.9 350/420 700 , 0.75 x 2 E ~ 1800 950 x 2200 x 1700 900
    HKMC-300A 22.5 60000/75000 2.9 465/560 550 , 0.75 x 4 EA ~ 3000 1000 x 2400 x 1940 1000
    · The standard of cooling capacity is 7.2°C and it differs depending in the evaporation temperature.
