제품 상세보기

제품명(영문)

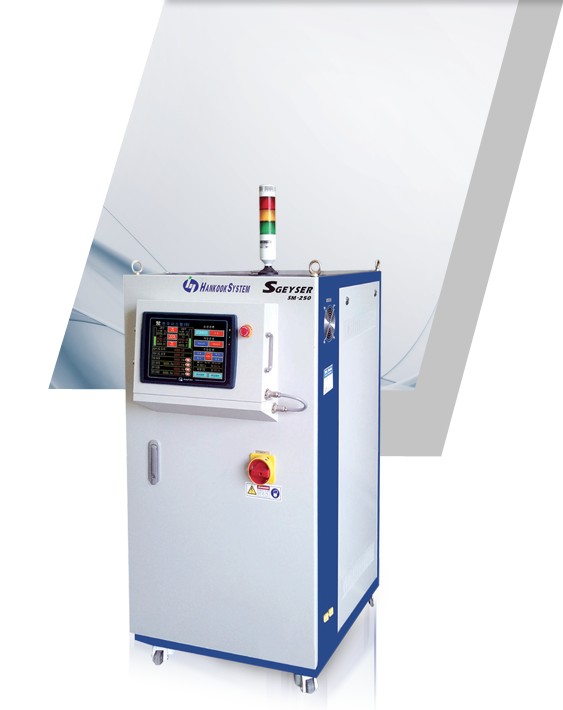

S-Geyser
제품 유형
High Gloss and High Precision of Mold

Product Features

  • High glossy surface with no painting

  • Easy control of mold temperature

  • Precise mold temperature control for high qualilty and products

  • Minimized mold temperature variation

    •


    Application

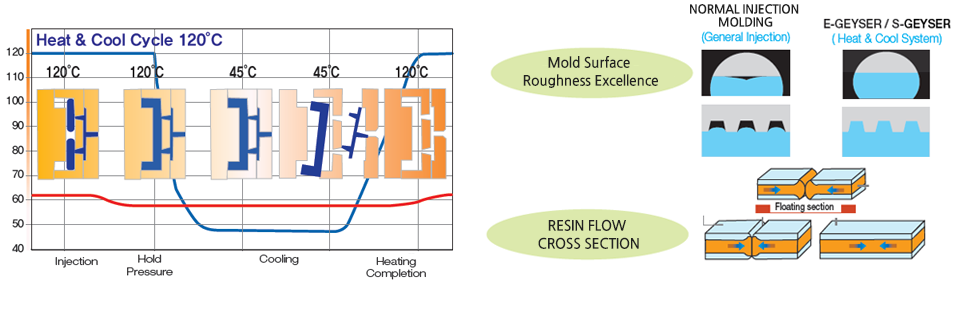

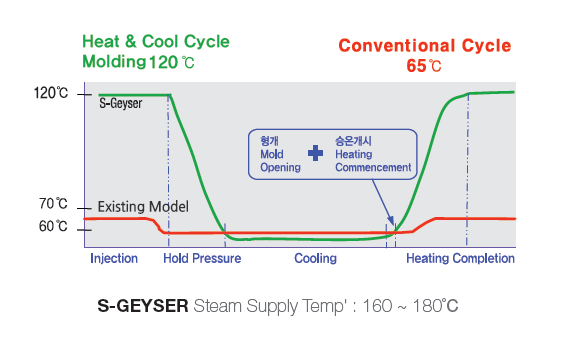

    Heat & Cool Cycle Sequence

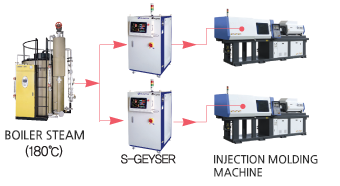

    Application And Technical Advantages





    Specifications

    Item Unit HKSM-250S, HKSM-250S-ToC Remark
    Spec
    Steam Pressure kgf/cm² 8~9
    Air Pressure kgf/cm² 5~6
    Touch Screen Inch TOUCH P/L 10.4" PLC Control
    Valve Form Pneumatic 32A
    Cooling Water ℓ/Min 200
    Steam Hose A(Inch) 32 (1¼")
    Steam Temp' Max℃ 180
    Power V/Hz 3∅ 220V/380V/440V 50/60Hz
    Weight Kg 300
    Dimension WxLxH(mm) 600 x1320 x 1400
    Cooling Pump ℓ/Min 200 2kW
    Air Supply ∅(mm) 12
    Power Supply Cable Size Ampere/Square 3A/2.5Sq FCV Application
