제품명(영문)
E-Geyser
제품 유형
Energy saving type ECO System

Product Features

  • By generating steam as a heating method, E-GEYSER makes quick heating or quick cooling of the mold.

  • High efficient and eco-friendly system save energy.

  • Multi-functional featuro is convenient to use by controlling temperature and time.

  • Energy saving type steam heating exchanger

  • over 20% energy saving efficiency compared with existing model

    •

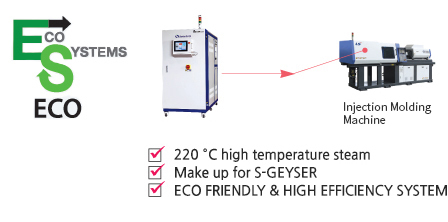

    Application

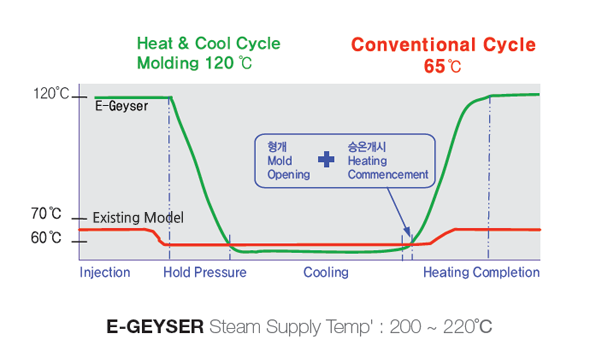

    Heat & Cool Cycle Sequence

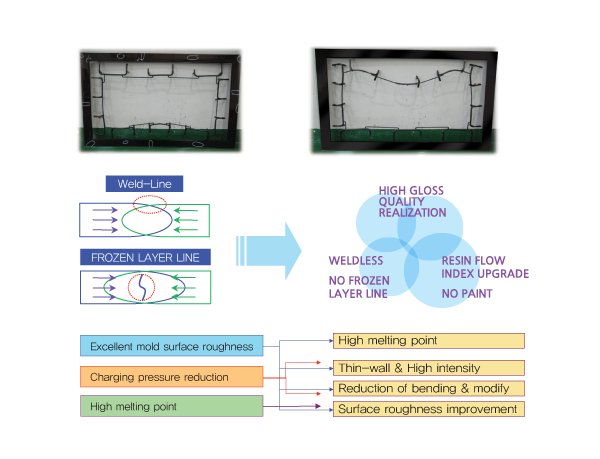

    Application And Technical Advantages





    Specifications

    Item Unit Model
    HKEG-V200 HKEG-V300 HKEG-V500 HKEG-V700 HKEG-V900
    Steam evaporation kg/hr 64 97 155 233 311
    Caloric K㎈/hr 43,000 64,500 103,000 154,800 206,400
    Working Pressure kgf/cm2 15-18 15-18 15-18 15-18 15-18
    Temp' Max ℃ 180-200 180-200 180-200 180-200 180-200
    Heater kW/h 50 (25kW*2ea) 75 (25kW*3ea) 120 (30kW*4ea) 180 (30kW*6ea) 240 (30kW*8ea)
    Cooling Pump kW, lpm 0.8, 85 1.1, 130 2.2, 150 4.0, 450 4.0, 450
    Inter Pump kW, lpm 3.0 Kw, 20 (L/min)
    Water Pipe Dia A (mm) 20 25 32 32 40
    Tank ℓ 100 160 200 250 250
    Power V/Hz 3Phase AC220V/380V/440V/50/60Hz
    Dimension WxLxH(mm) 700 x 1450 x 1650 750 x 1900 x 1700 (1900) 850 x 2050 x 1800 (2000) 950 x 2100 x 1950 (2050) 950 x 2100 x 1950 (2050)
    R/O System (embedded) PPM - 15 Under 15 Under - -
    Power Cable Size Ampere/Square 100A/25Sq 125A/50Sq 225A/70Sq 350A/120Sq 400A/150Sq
