제품 상세보기

제품명(영문)

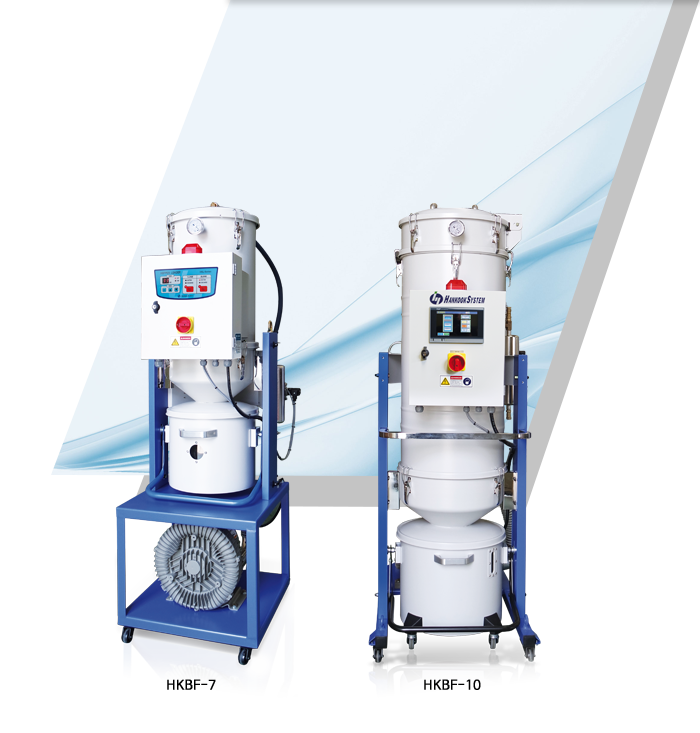

Bag Filter & Blower
제품 유형
Powerful transfer-ability and low-noise, high-efficiency Blower

Product Features

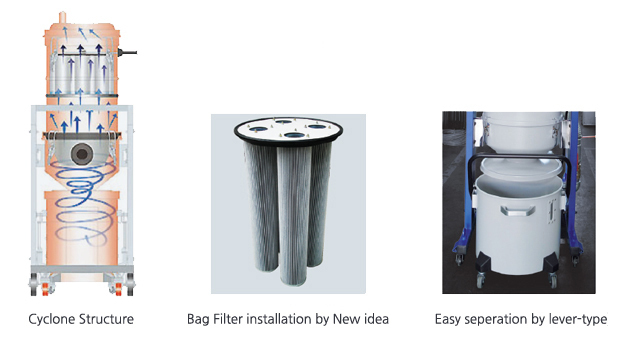

  • Dual cyclone structure

  • Installation of fine dust cartridge filters (aluminum coating)

  • With dust tank, Seperation-function to 3 parts

  • Minimization of jam-condition is caused by dust scattering

  • Integral structure space take advantage of excellent

  • Type : L type (Loader Panel) T type (Touch Panel)

    •


    Component





    Specifications

    Model Max, Capacity
    kg/h    		 Capacity
    m³/min    		 Motor Pow.
    kW    		 Air Pressure
    mmaq    		 Air pressure
    m²    		 Suction hose
    ∅(mm)    		 Dimensions
    WxLxH(mm)
    HKBF-7-6D 300 4.1 4.6 4500 3 60 600 x 600 x 1750
    HKBF-7-6S 500 6.2 4.6 3000 3 60 600 x 600 x 1750
    HKBF-7-7.5D 600 6.2 6.3 4500 3 60 600 x 600 x 1750
    HKBF-10-7.5D 600 6.2 6.3 4500 10 60 700 x 1100 x 1950
    HKBF-10-10S 800 10.5 8.6 3500 10 60/76 700 x 1100 x 1950
    HKBF-10-15D 1000 10.5 12.6 4500 10 60/76 700 x 1100 x 1950
