Single Loader
제품 유형
A single Loader for small-capacity and space utilization

Product Features

  • Can be installed in narrow space and utilized to the maximum effect with low electric consumption.

  • Absolutely remove the static causing malfunction in material feeding process.

  • Special filter and valve clean the dust automatically and can be easily replaced.



    • Specifications

    Model Motor
    kW(50/60Hz)    		 Max. Air Flow
    m3/min(50/60Hz)    		 Max. Vacuum
    mmAq    		 Conveying Hose
    I.D mm    		 Standard Cyclone
    kg/b    		 Dimensions
    ∅ x H (mm)

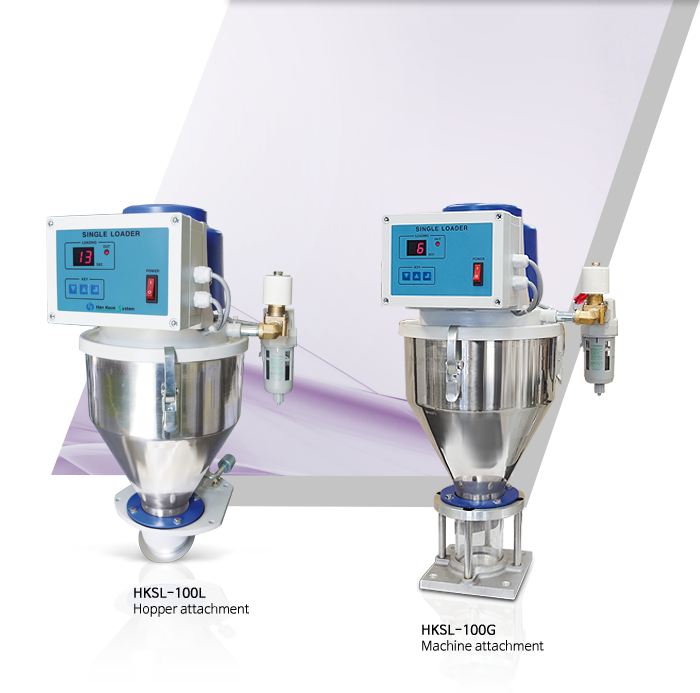

    HKSL-100L 1.0/1.15 2.3/2.8 2050 / 2450 38.1 3 265 x 490
    HKSL-100G 1.0/1.15 2.3/2.8 2050 / 2450 38.1 3 265 x 670
