Product Features

High-quality ring blower with high air pressure and air flow is installed for the better material feeding process.

Optimized feeding is enabled through dust collector and filter, blocking micro dust, gather and eliminate dusts easily.

With limit switch and timer, watching material shortage and easy controlling operation or waiting time.

Stainless steeled cyclone is easily cleaned and has no corrosion

2 Line touch panel

Function to set time cleaning valve

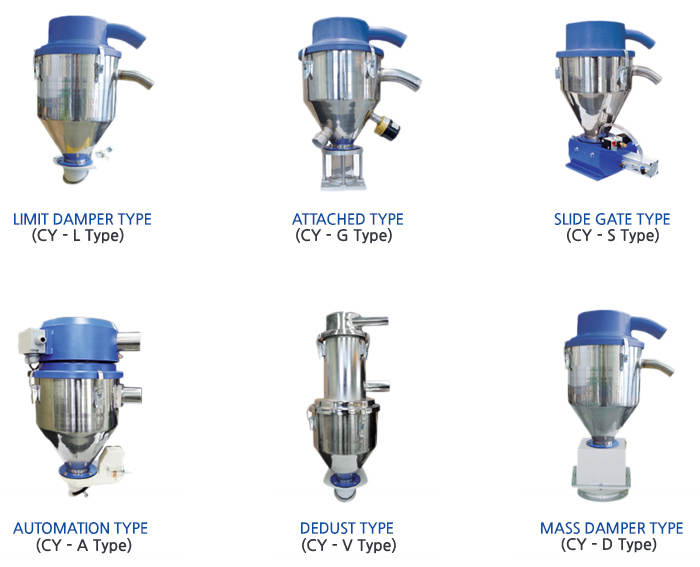

Diversified Kinds Of Cyclone Models

Hopper Loader & Automation Cyclone connected. The best material feeding process

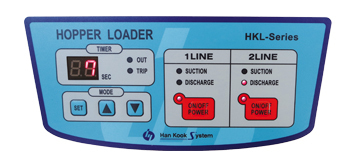

2 Line Touch Panel

Cyclone

Model	Weight kg	Material Conveying Conveying	Suction Suction
CY-2	2	38.1	38.1
CY-3	3	38.1	38.1
CY-5	5	50.8	50.8
CY-8	8	50.8	50.8
CY-12	12	50.8	50.8
CY-20	20	60.5	60.5
CY-25	25	60.5 / 76.3	60.5 / 76.3

Hopper Loader Specifications

Model	Motor kW(50/60Hz)	Max. Air Flow m3/min(50/60Hz)	Max. Vacuum mmAq(50/60Hz)	Conveying Hose I.D mm	Suction Hose I.D mm	Standard Cyclone kg/b	Dimensions W x L x H (mm)
HKL-2	1.75/1.9	2.6 / 3.1	2000 / 2300	38.1	38.1	3	400 x 650 x 740
HKL-3	2.2 / 2.55	3.6 / 4.2	2300 / 2600	50.8	50.8	8	400 x 650 x 740
HKL-5	3.0 / 3.7	5.2 / 6.1	2500 / 2800	50.8	50.8	8	430 x 700 x 780
HKL-6	4.0 / 4.5	5.2 / 6.1	2800 / 3200	50.8	50.8	8 / 12	430 x 700 x 780
