제품 상세보기

제품명(영문)
Mini Mixer
제품 유형
Mixers applying new mixing fitted in cost saving

Product Features

  • Can be installed on molding machines or extruders, and also can be installed on diverse places by the condition of user’s working place.

  • Minimum size for installation (can be installed under the bottom die of hopper, and installation of the other devices to mix up materials is not in need) facilitates the cost reduction.

  • Various products in small quantity can be produced effectively and perfect for the precision work.

    •



    Combination (Single Type)

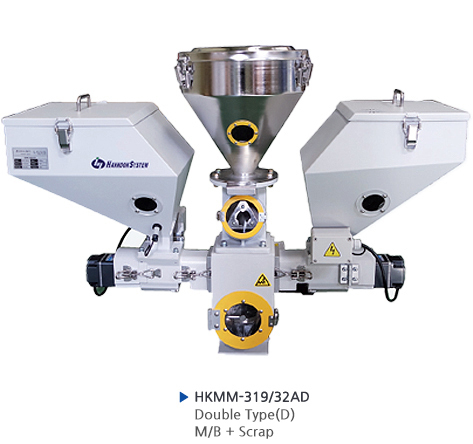

    Combination (Double Type)



    Mini Mixer Compositions

    Standard type

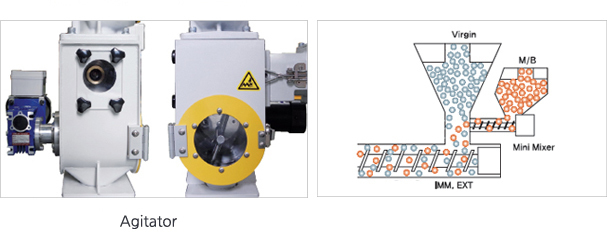

    Virgin + M/B, Virgin + Additive, Virgin + Scrap

    Multi Combination type

    Virgin + M/B + Additive, Virgin + M/B + Scrap

    Application

    Injection M/C, Extruder M/C, Blow Molding M/C





    Specifications

    Model Motor/Gear Head
    W    		 Agitator Motor
    W    		 Screw/Sleeve
    mm    		 Capacity g/rpm
    (g/min)    		 Die Size
    mm    		 Hopper Dryer Dimensions W x L x H
    (mm)

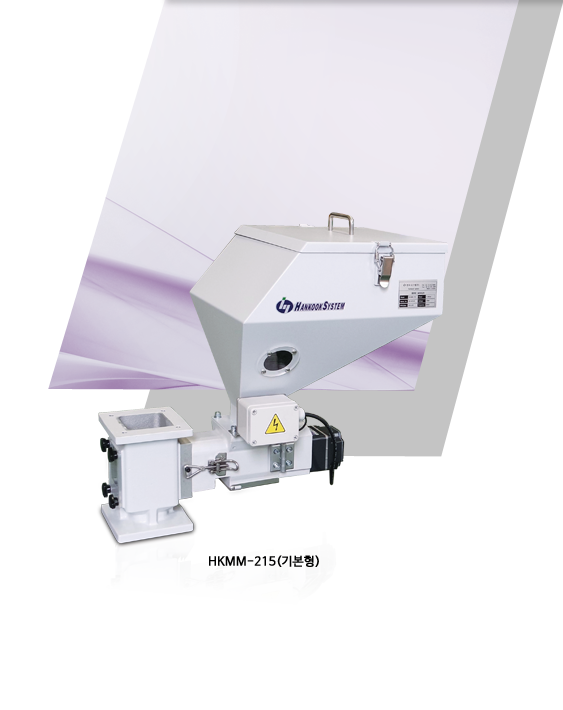

    HKMM-215 50x1/50 - 15/24 2 (6~100) 152 x 152 HKD-25~75 ~ 350 ton 360 x 690 x 600
    HKMM-219 19/28 3.5 (10~175)
    HKMM-226 26/36 8 (24~400)
    HKMM-232 32/42 14 (42~700)
    HKMM-315 50x1/50 - 15/24 2 (6~100) 222 x 222 HKD-100~200 350 ton ~ 360 x 715 x 600
    HKMM-319 19/28 3.5 (10~175)
    HKMM-326 26/36 8 (24~400)
    HKMM-332 32/42 14 (42~700)
    HKMM-215A 50x1/50 200 x 1/50 15/24 2 (6~100) 152 x 152 HKD-25~75 ~ 350 ton 360 x 690 x 660

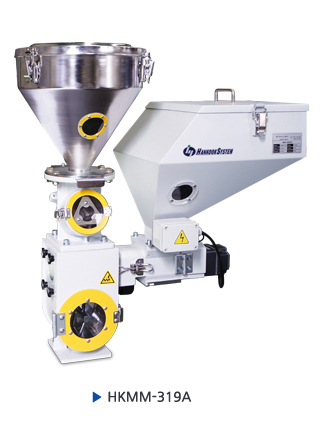

    HKMM-219A 19/28 3.5 (10~175)
    HKMM-226A 26/36 8 (24~400)
    HKMM-232A 32/42 14 (42~700)
    HKMM-315A 50x1/50 200 x 1/50 15/24 2 (6~100) 222 x 222 HKD-100~200 350 ton ~ 360 x 715 x 660
    HKMM-319A 19/28 3.5 (10~175)
    HKMM-326A 26/36 8 (24~400)
    HKMM-232A 32/42 14 (42~700)

    * Power Supply - 220V x 1∅
    * Option : Agitator type Hopper Dryer
