제품 상세보기

제품명(영문)

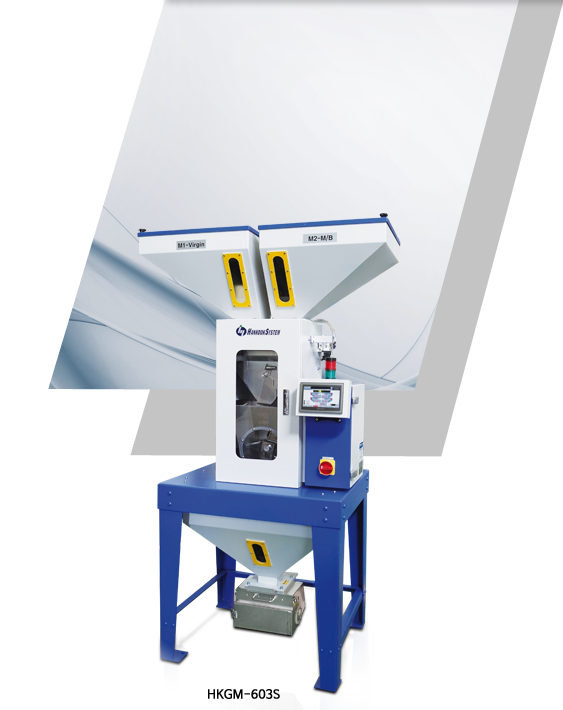

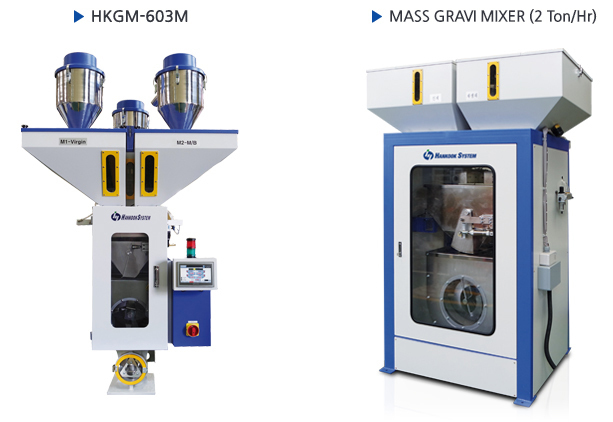

Gravi Mixer
제품 유형
Excellent productivity, shortly complete mixing

Product Features

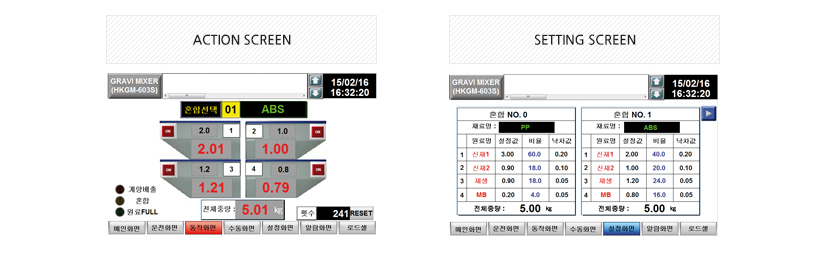

  • Application of Touch Screen & PLC Interface

  • Easy & Simple operation input mode to use

  • Easy to measure the grinding medium by the application of cylinder slide & screw type

  • Various resin combination function.

  • Excellent measuring capacity for compact size

  • Easy to material change and cleaning

    •



    Model





    Instruction Manual





    Specifications

    Model Components
    EA    		 Mixing Capa
    kg/hr    		 Motor/Gear Head
    W x EA    		 Scale hopper
    Kg/b    		 Dimensions
    W x L x H (H1) (mm)
    HKGM-202M, -202S 2 ~250 200 x 1/30 2.5 980 x 490 x 1180 (1800)
    HKGM-203M, -203S 3 ~250 200 x 1/30 2.5 980 x 670 x 1180 (1800)
    HKGM-204M, -204S 4 ~250 200 x 1/30 2.5 980 x 670 x 1180 (1800)
    HKGM-602M, -602S 2 ~600 400 x 1/30 5 1150 x 750 x 1380 (2010)
    HKGM-603M, -603S 3 ~600 400 x 1/30 5 1150 x 1080 x 1380 (2010)
    HKGM-604M, -604S 4 ~600 400 x 1/30 5 1150 x 1080 x 1380 (2010)
    HKGM-1202M, -1202S 2 ~1200 750 x 1/30 10 1370 x 950 x 1520 (2250)
    HKGM-1203M, -1203S 3 ~1200 750 x 1/30 10 1370 x 1300 x 1520 (2250)
    HKGM-1204M, -1204S 4 ~1200 750 x 1/30 10 1370 x 1300 x 1520 (2250)
    Power Supply - 220V x 1∅
