Color Mixer
제품 유형
With continuous and automatic mixture, performing maximum ability

Product Features

  • Mixes virgin, scrab, or over two kinds of material with correct ratio.

  • Small quantity as well as large quantity of materials can be mixed and precision weighing is possible.

  • As an continuously measuring mixer, used for centralized automatic feeding syste

  • Variants : 2C, 3C, 4C

    •





    Standard Screw Volume

    Screw Model
    ∅    		 General Supply Materials
    (kg/hr)
    19 15~20
    26 40~50
    49 250~300
    64 400~500





    Standard Resin Combination Type

    2 kinds V+V, V+M/B, V+S
    3 kinds V+V+M/B, V+S+M/B
    V+R+M/B
    4 kinds V1+V2+R+M/B, V1+V2+S+M/B
    V : Virgin, S : Scrap, R : Repellet, M/B : Master batch





    Specifications

    Model Components EA Mixing Capa
    kg/hr    		 Motor/Gear Hea
    W x EA    		 Screw Speed R.P.M Screw Dia ∅ Dimensions
    W x L x H (mm)

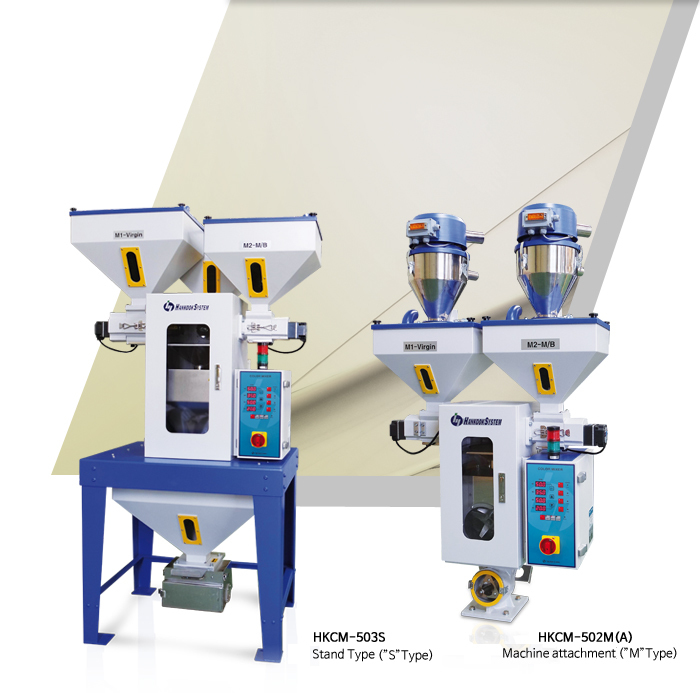

    HKCM-302M, -302S 2 300~600 50x1/20 x 2 7.5~125 49, 19 980x490x1180 (1800)
    HKCM-303M, -303S 3 300~900 50x1/20 x 3 7.5~125 49, 19 980x670x1180 (1800)
    HKCM-304M, -304S 4 300~1200 50x1/20 x 4 7.5~125 49, 19 980x670x1180 (1800)
    HKCM-502M, -502S 2 500~1000 50x1/20 x 2 7.5~125 64, 26 1150x750x1380 (2010)
    HKCM-503M, -503S 3 500~1500 50x1/20 x 3 7.5~125 64, 26 1150x1080x1380 (2010)
    HKCM-504M, -504S 4 500~2000 50x1/20 x 4 7.5~125 64, 26 1150x1080x1380 (2010)
