제품 상세보기

제품명(영문)

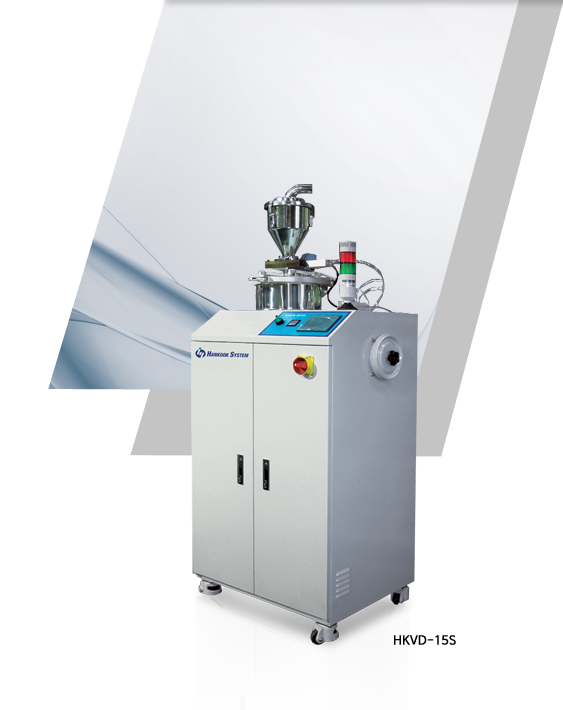

Vacuum Dryer
제품 유형
Consecutive-type Automatic Vacuum Dryer



Product Features



  • Rapid dehumidifying

    • Improvd Dehumidifying Speed



  • Energy Saving

    • It's vacuum-typed Dehumidifying saves 50% more than the existing heated cooling type.



  • Improved Quality

    • By reducing exposure time to heat down to 30 minutes, it minimizes deformation of raw material's unique properties.



  • Convenient to Use

    • It ensures convenience to change raw material and low maintenance cost by not using a dehumidifying agent.



  • Space Saving for installation

    • It occupies only 60% of dehumidifyin dryer.

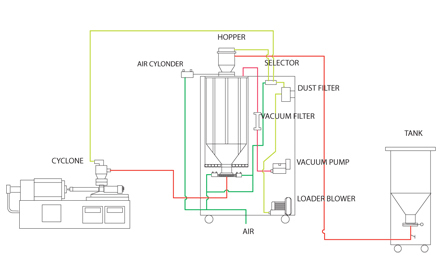

    Vacuum Dryer - Flow Diagram





    Instruction Manual





    Specifications

    Item Capacity power consumption Weight
    kg    		 Dimension
    W x L x H(mm)
    Heater Blower 진공 펌프
    HKVD-15S 5 2kW 0.83kW 0.3kW 150 650 x 550 x 1700





    Vacuum Pump

    제품 형식 MP-80-H03-VS(MISUVAC)
    Power 220V x 3상 3선식, 380V x 3상 4선식 사용 50/60Hz(선택사항)
    Max Vacuum 099MPa (99KPa)
    Flow Rate of Air 44/52 L/M
    Rated Current 2.5/2.4A
    Motor 0.3kW (50/60HZ 겸용)





    Blower

    Power 50Hz(0.7kW), 60HZ(0.83kW)





    Power Connection

    Power 220V X 3상 3선식, 380V x 3상 4선식
    Main Cable 2.5mm2 x 4C
