제품 상세보기

제품명(영문)
COMBI-Air Dryer
제품 유형
Small size and precision dehumidification, Loader assembled Type

Product Features

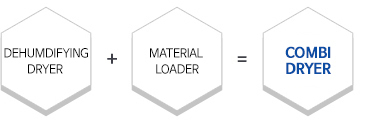

  • Loader assembled type for material feeding



  • Heatles Type Air Unit

    • Heatles Regenerative Type which means regenerte some of air without using heat source



  • Easy Installation

    • Coolant pipe free & plenty of room for installation



  • Guaranties dew point

    • Stable over dew point -40°C



  • Simple structure & Elegant Look

    • Simple structure makes easier equipment manintenance

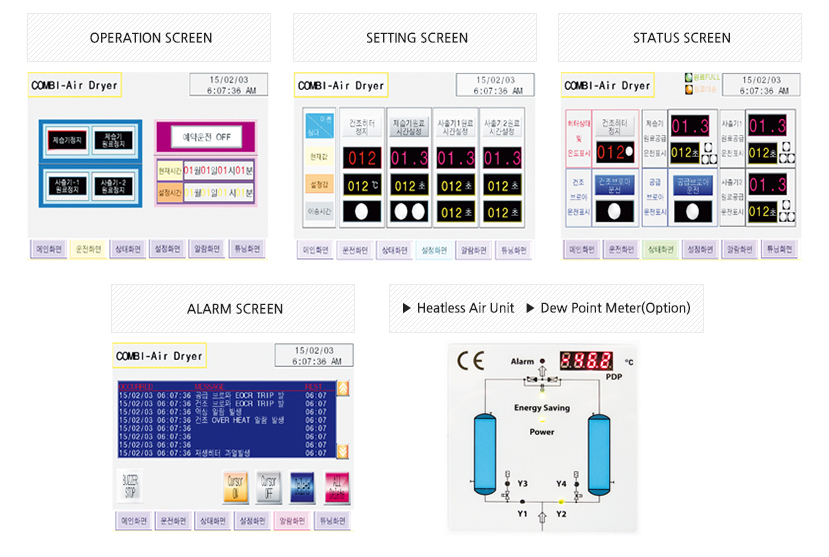

  • Touch Type Implementation System is convenient to use equipment

    • PLC & Graphic Touch Panel Stereogram Reserve Function For Dried Material Feeding Process, Alarm function, Embedded cleaning valve



  • Cyclone

    • : Dehumidifying Unit (CY-3S), Injection Molding Machine (CY-3G)





    Flow Diagram





    사용 매뉴얼

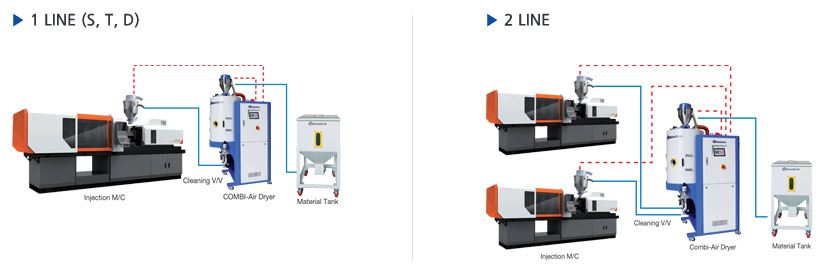

    설치 방식





    Specifications

    Model Air Flow
    m³/hr(50/60Hz)    		 Capacity
    (kg/b)    		 Air Consume
    ℓ/min    		 Drying blower
    kW    		 Suction blower
    kW    		 Drying heater
    kW(M/H Type)    		 Dimensions
    W x L x H (mm)
    HKCD-101-75K 105 / 120 75 220 1.0 1.5 6 / 7.5 825 x 1125 x 1600
    HKCD-101-100K 105 / 120 100 300 1.0 1.5 6 / 7.5 825 x 1125 x 1670
    HKCD-101-150K 105 /180 150 400 1.0 1.5 6 / 7.5 825 x 1125 x 1870
    · Option : 1)2Line 2)Dew Point Meter
