Product Features

Punctured net provides maximum drying performance through the stable hot air supply.

Temperature controller prevents the device from overheating and guarantees the uniform condition of drying performance.

Cartridge filter effectively prevents taints and black spots.

Easy to clean by the one-touch connection between the cone and the main body.

Magnet die facilitat checking the resin congestion and iron gathering.

A dust collector is installed to improve the condition of working place.

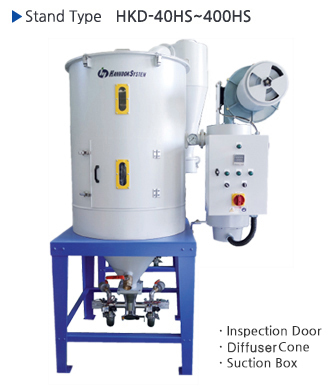

Stand Type For Big Capacity

Combined Type With Loader

Standard Drying Temperature & Time

Material	Initial moisture content %	Drying temperature ℃	Drying Hr
ABS	0.5	80	2~3
POM	0.3	100	2~3
PC	0.3	120	3~4
PE	0	80	1~2
PMMA	0.5	80	3~4
PP	0	80	1~2
PA(Nylon)	1	80	4~6
PBT	0.3	130	3~4

Specifications

Model	Capacity kg/b	Voltage(3P,220/380V,50/60Hz)		Dimensions W x L x H (mm)	For molding machine Ton
Model	Capacity kg/b	Heater kW	Blower kW	Dimensions W x L x H (mm)	For molding machine Ton
HKD-5	25	3	0.2	780 x 650 x 980 (1150)	50~100
HKD-10	50	6	0.2	860 x 720 x 1150 (1320)	100~150
HKD-15	75	6	0.2	950 x 820 x 1230 (1400)	150~250
HKD-20	100	9	0.5	1180 x 1080 x 1310 (1570)	250~350
HKD-30	150	9	0.5	1180 x 1080 x 1500 (1770)	350~450
HKD-40	200	12	0.5	1500 x 1150 x 1680 (2000)	450~550
HKD-50	250	15	0.5	1500 x 1150 x 1880 (2250)	650~850
HKD-60	300	15	0.5	1500 x 1150 x 2100 (2400)	850~1800
HKD-80	400	24	0.6	1690 x 1330 x 1960 (2360)	1300 up
HKD-100	500	24	0.6	1720 x 1360 x 2180 (2580)	1800 up
HKD-200	1000	32	1.1	2050 x 1600 x 2800 (3200)	2000 up

· Figures in "( )" are maximum height.
