Product Features

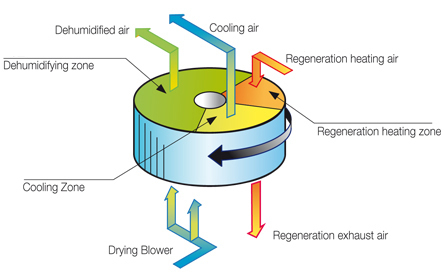

Honeycomb Rotor Type

Endurable & Semipermanent rotor which adopt honeycomb structure molded in molecular sieve



Guaranties dew point

Stable over dew point -40°C



Simple structure & Elegant Look

Simple structure makes easier equipment manintenance



Touch Type Implementation System is convenient to use equipment

PLC & Graphic Touch Panel Stereogram Reserve Function For Dried Material Feeding Process, Alarm function, Embedded cleaning valve



Fool/proof Response model







Flow Diagram

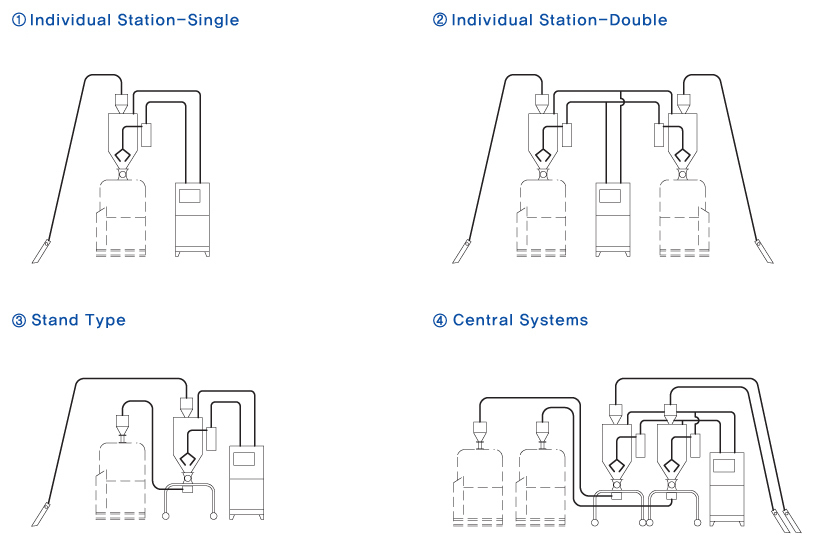

Installation Style





Drying Conditions Illustrates

Condition A Summer	With hopper dryer in 80% relative humidity and 20℃ surrounding temperature
Condition B Spring	With hopper dryer in 70% relative humidity and 12℃ surrounding temperature
Condition C No relation	With dehumidifer, average operating Dew Point -40℃, not caring surrounding temperature



표준사양

Model Spec	UNIT		HKAD-202	HKAD-208	HKAD-208	HKAD-210	HKAD-220
Air flow	m3/hr	50/60Hz	170/200	260/300	340/400	430/500	850/1000
Drying Temperature	Max, ℃	MT Type	150	150	150	150	150
		HT Type	180	180	180	180	180
Honey Comb Model	HC-	-	3520	4530	4530	6030	6030
Rotation Motor	W	-	25	25	25	25	25W-2
DRYING/RENEWING/COOLING	mm	-	76/51/38	89/61/51	89/61/51	114/76/51	152/76/51
Drying Blower	kW	-	1.9	2.6	6.3	6.3	12.6
Regeneration Blower	kW	-	0.2	0.5	0.5	0.8	2.6
Drying Heater	kW	MT Type	9	18	18	24	40
		HT Type	12	24	24	30	48
Regeneration Heater	kW	-	6	9	9	12	24
Air Cooler	ℓ/min	Kcal/hr	40/4,000	80/8,000	80/8,000	120/12,000	240/24,000
IN/OUT Size	A	mm	20A x ∅16	25A x ∅19	25A x ∅19	25A x ∅25	32A x ∅32
Dimensions	mm	Width	700	800	800	900	1250
		Length	840	1000	1000	1200	1600
		Height	1550	1800	1800	1900	2300
Application Hopper	Kg/b	-	200~300K	400~600K	800K	1000~1500K	2000~3000K

· DEW POINT & EQUIPMENT CAPACITY DIFER DEPEND IN THE EXTERNAL CONDITIONS (27 °C & RH 70%)



건조 성능표

Material	Temp' (℃)	nitia (%)	Final (%)	*K=m3/hr	Time (hr)	Drying capacity in kg/hr
						HKCD-201	HKAD-202	HKAD-205	HKAD-208	HKAD-210	HKAD-215	HKAD-220
ABS	80	0.3	0.02	1.5	2~3	67	113	167	200	267	327	534
CA	60~70	1	0.02	2.1	2~3	47	81	119	143	190	240	380
PA6,66	75~80	1	0.04	2	4~6	50	85	125	150	200	300	400
PBT	120~140	0.2	0.02	2	3~4	50	85	125	150	200	320	400
PC	120	0.3	0.01	1.5	2~3	67	113	187	200	267	320	534
PC+ABS	80	0.3	0.02	1.5	2~3	67	113	187	200	267	320	534
PET	140~160	0.2	0.005	3	4~6	33	57	83	100	133	150	266
PETG	60~70	0.2	0.02	3.7	3~4	27	46	67	81	108	320	216
PMMA	80	0.2	0.02	1.5	3~4	67	113	167	200	267	320	534
POM	100	0.2	0.02	1.5	2~3	67	113	167	200	267	320	534
PPO	110~120	0.1	0.04	1.5	1~2	67	113	167	200	267	320	534
PPS	140~160	0.1	0.02	1.5	3~4	67	113	167	200	267	320	534
SAN	140~160	0.1	0.05	1.5	2~3	67	113	167	200	267	320	534

· K=m3/hr for a production of 1kg/h - Above drying performance can change subject to the grades of material, the material’s initial moisture content and the drying temperature.
· Option:Dew point meter
