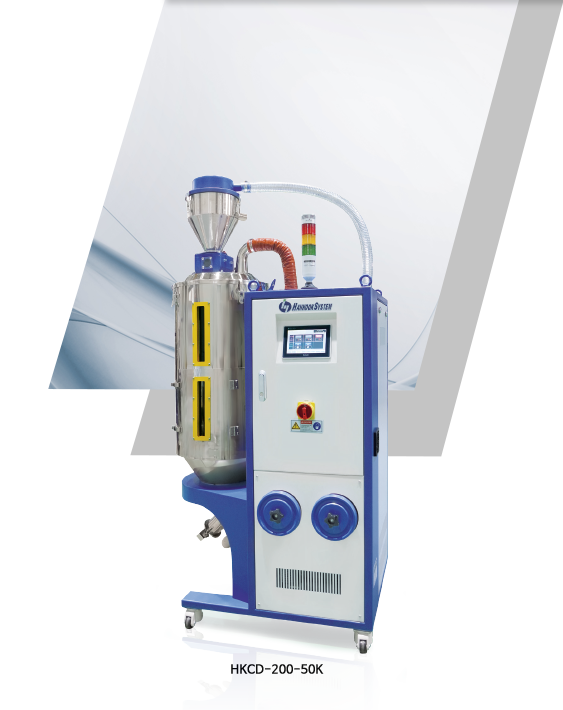

Product Summary: Small size and precision dehumidification, Loader assembled

Product Features

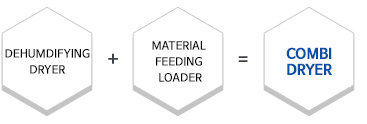

Loader assembled type for material feeding

Honeycomb Rotor Type

Endurable & Semipermanent rotor which adopt honeycomb structure molded in molecular sieve

Guaranties dew point

Stable over dew point -40°C

Air cooler of air cooling type

Unnecessary to supply water to air cooler

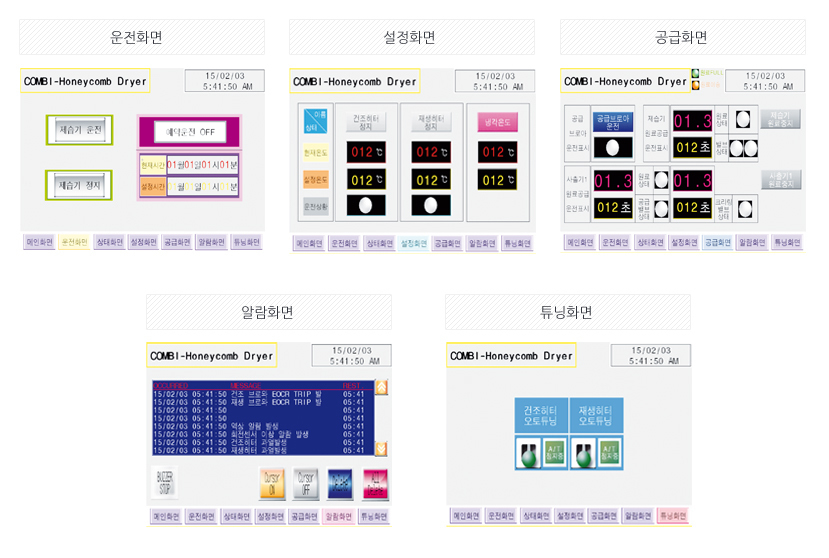

Touch Type Implementation System is convenient to use equipment

PLC & Graphic Touch Panel Stereogram Reserve Function For Dried Material Feeding Process, Alarm function, Embedded cleaning valve

Fool/proof Response model

Cleaning Valve

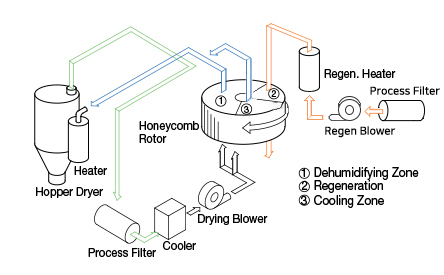

Flow Diagram

Instruction Manual

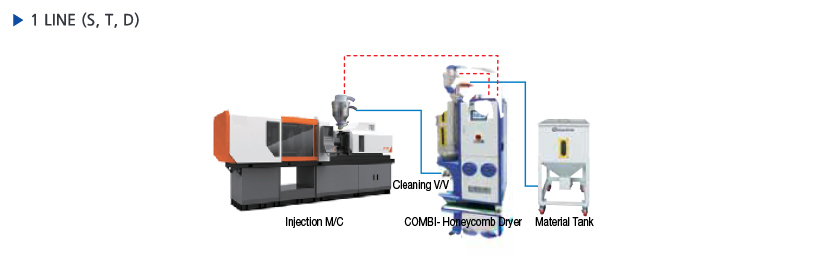

Installation Style

Specifications

Model	Air Flow m3/hr(50/60Hz)	Capacity kg/b	Drying blower kW	REG' blower KW	Suction blower kW	Drying heater kW(M/H Type)	Drying heater kW	Cyclon Mode	Dimensions W x L x H (mm)
HKCD-200-25K	56/66	25	0.5	0.2	1.5	4/6	2.4	3S, 1G	1135 x 650 x 1700
HKCD-200-50K	56/66	50	0.5	0.2	1.5	4/6	2.4	3S, 1G	1135 x 650 x 1980
HKCD-200-75K	56/66	75	0.5	0.2	1.5	4/6	2.4	3S, 1G	1135 x 650 x 2200
HKCD-201-100K	85/100	100	0.9	0.2	2.2	6/7.5	2.4	5S, 3G	1375 x 750 x2130
HKCD-201-150K	85/100	150	0.9	0.2	2.2	6/7.5	2.4	5S, 3G	1375 x 750 x2320

· Option : Dew point meter
