Zeta-Air Dryer
Product Summary
Small size and precision dehumidification, Energy-Saving Type ZETA-Air Dryer

Product Features

To maintain optimum dehumidifying condition, this dryer apply the core technology 'MYCOM process control system'. Through innovative heater and precision air-control equipment, prevent over-dry of raw material and maintain optimum dehumidifying-ability.



  • Compressed-air type (HKZD Series)

    • It is a system using compressor-air to dry Hycroscope, Polymer. The series are made up of 3 models, The capacity is from min.2kg/hr to max.18kg/hr. The average dew-point of ZETA dryer gurantee -20℃. ZETA dryer is designed to be suitable for Injection Mold Machine and Blow Molding Machine. In special, when use a little quantity of raw material, Be available to be used with optimal condition.



  • Dehumidifying TOP Cartridge type (HKZD-G Series)

    • When require more low dew-point(-40℃) than using compress air type, additionally apply Dehumidifying TOP Cartridge type. Due to material's nature, it is used when require low dew-point -40℃



  • Touch Screen Panel / Dry scheduling

    •

  • FOOL/PROOF Response model

    •

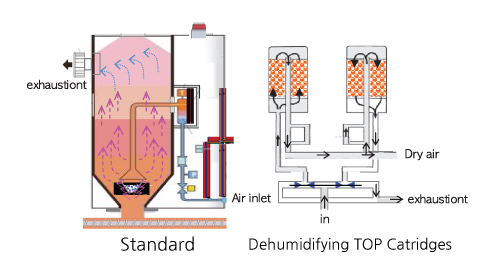

    Operating principles

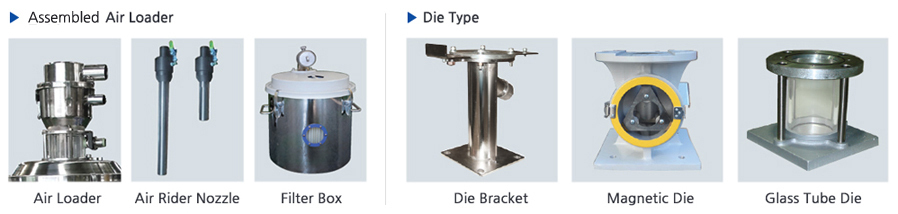

    Material Loading Method





    Specifications

    Type Standard HKZAD-12 HKZAD-25 HKZAD-50
    Dehumidifying TOP HKZAD-12G HKZAD-25G HKZAD-50G
    DEW Point Standard -20℃
    Dehumidifying TOP -40℃
    Hopper Volume(kg/b) 12 25 50
    Compressed Air (㎥/hr) 5-8 6-20 9-34
    Drying Capacity(kg/hr) 2-3.5 6-10 9-18
    Heating Power(kW) 1 2 2.6
    Dimension(∅x h) 290 x 760 358 x 930 444 x 1080
    Voltage 220V x 1∅ 50/60Hz
    Temperature range 40℃ ~ 160℃

    ·  Supply Compressor Air : Pressure dew point 5℃, Pressure 6~8kg/cm2 standard





    Drying Performance

    Model Material B. D Starting Moisture End Moisture Drying Drying capacity in kg/hr
    kg/cm³ % % Time Temp. HKZAD-12 HKZAD-25 HKZAD-50
    h ℃ kg/h kg/h kg/h
    A ABS 0.60 0.30 0.02 2.5~3 80 4.0 9.4 17.5
    CA 0.50 1.00 0.02 2.5~3 75 2.8 6.5 12.2
    PA6,66 0.65 1.00 0.04 4~6 80 2.8 5.6 9.8
    PBT 0.70 0.30 0.02 4 125 3.4 7.8 14.6
    PC 0.70 0.30 0.01 2.5~3 120 4.0 9.1 17.0
    PE 0.60 0.10 0.01 2.5 90 4.1 9.4 17.5
    PES 0.70 0.80 0.02 4 150 3.0 7.0 12.8
    PMMA 0.65 0.50 0.02 3 80 3.7 8.5 15.8
    POM 0.60 0.20 0.02 3 100 3.4 7.8 14.6
    PPO 0.50 0.13 0.04 2 120 4.3 9.8 18.3
    PPS 0.60 0.10 0.02 3~4 140 2.9 6.7 12.5
    PC+ABS 0.70 0.30 0.02 3 90 4.0 9.1 17.0
    SAN 0.50 0.10 0.04 2~3 80 3.4 7.8 14.6
    TPE 0.55 0.10 0.04 2~3 90 3.1 7.2 13.4
    B CP 0.60 1.00 0.02 2.5~3 75 3.4 7.6 14.6
    PET(INJ) 0.80 0.20 0.02 3~4 140 3.0 7.8 14.6
    PET(Perform) 0.80 0.20 0.005 5~6 160 2.3 5.2 9.7
    PETG 0.60 0.50 0.02 4~6 70 2.0 4.7 8.8
    PUR 0.70 0.20 0.04 3 90 4.0 9.1 17.0
    PVC 0.55 0.10 0.02 2 75 4.7 10.8 20.1
    PP+Talco 0.60 0.10 0.02 2~3 90 4.1 9.4 17.5
    EVA 0.60 0.10 0.01 4 40 2.6 6.0 11.0

    ·  May vary by the type of material and drying temperature, air compressor, depending on the condition of supply.
